Jeremywell Pillow Block Bearing

Jeremywell Pillow Block Bearings

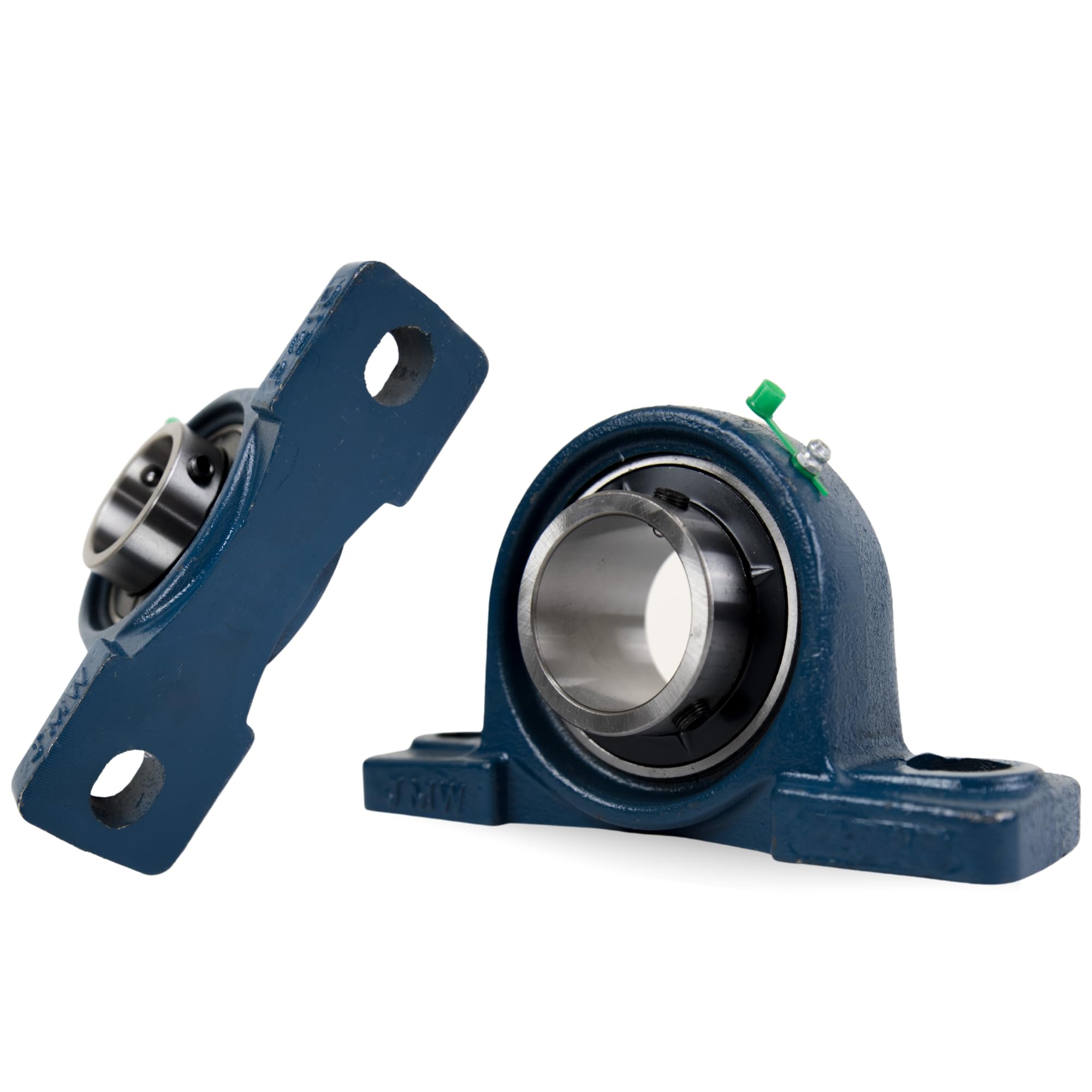

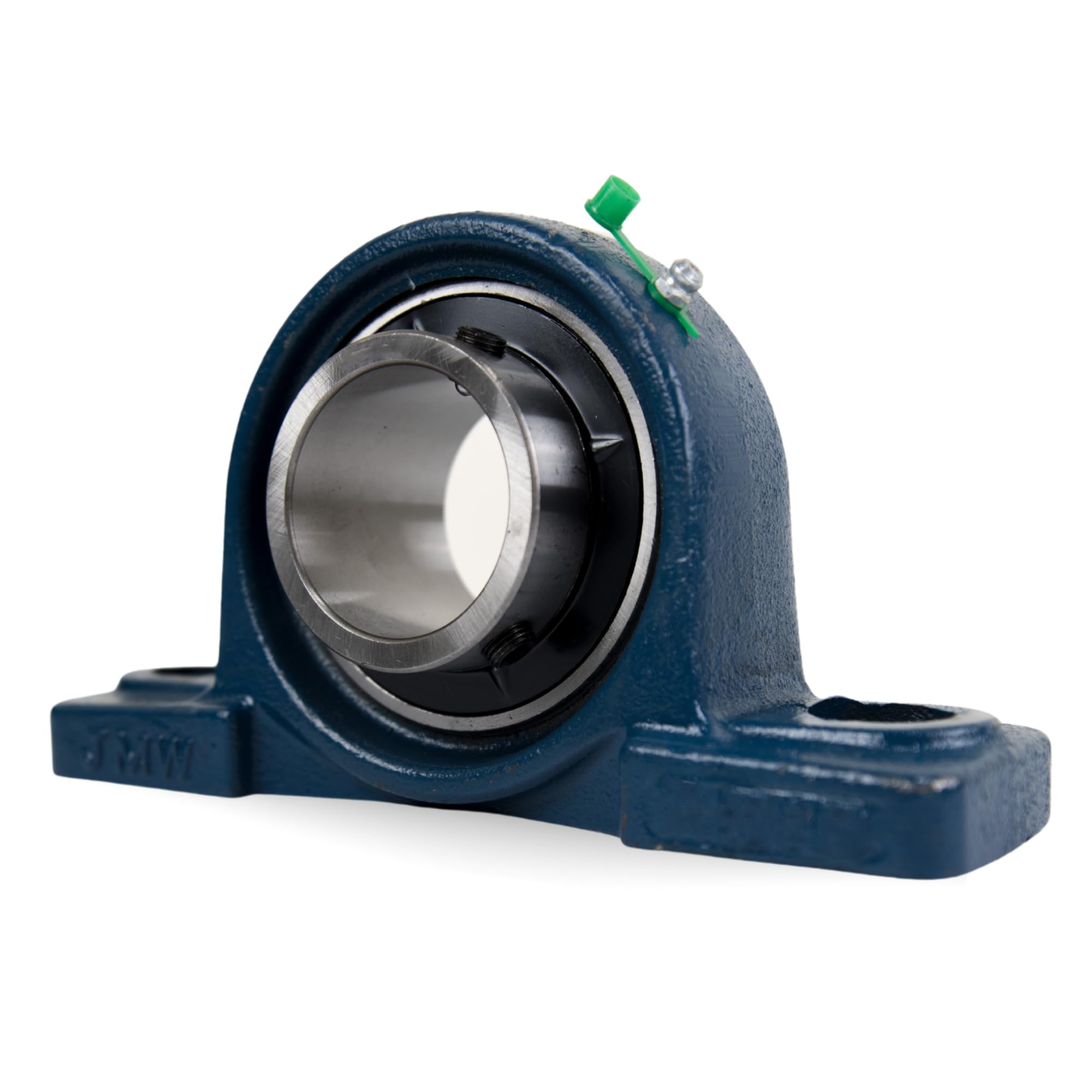

Pillow blocks are the most popular choice of mounted units, providing shaft support. The UCP pillow block mounted bearing series has two bolt holes, and a set screw lock is designed for mounting onto bearing surfaces parallel to the shaft axis, such as conveyor belts. This ready-to-mount unit has a solid base cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. This one-piece pillow block housing allows for a stationary outer ring and a rotating inner ring. The insert bearing maintains the separation between moving parts to reduce rotational friction and support radial and axial loads. The bearing is secured to the shaft with set screws to prevent slippage. This mounted bearing is used in food and beverage manufacturing, textile industry, and many other industrial manufacturing.

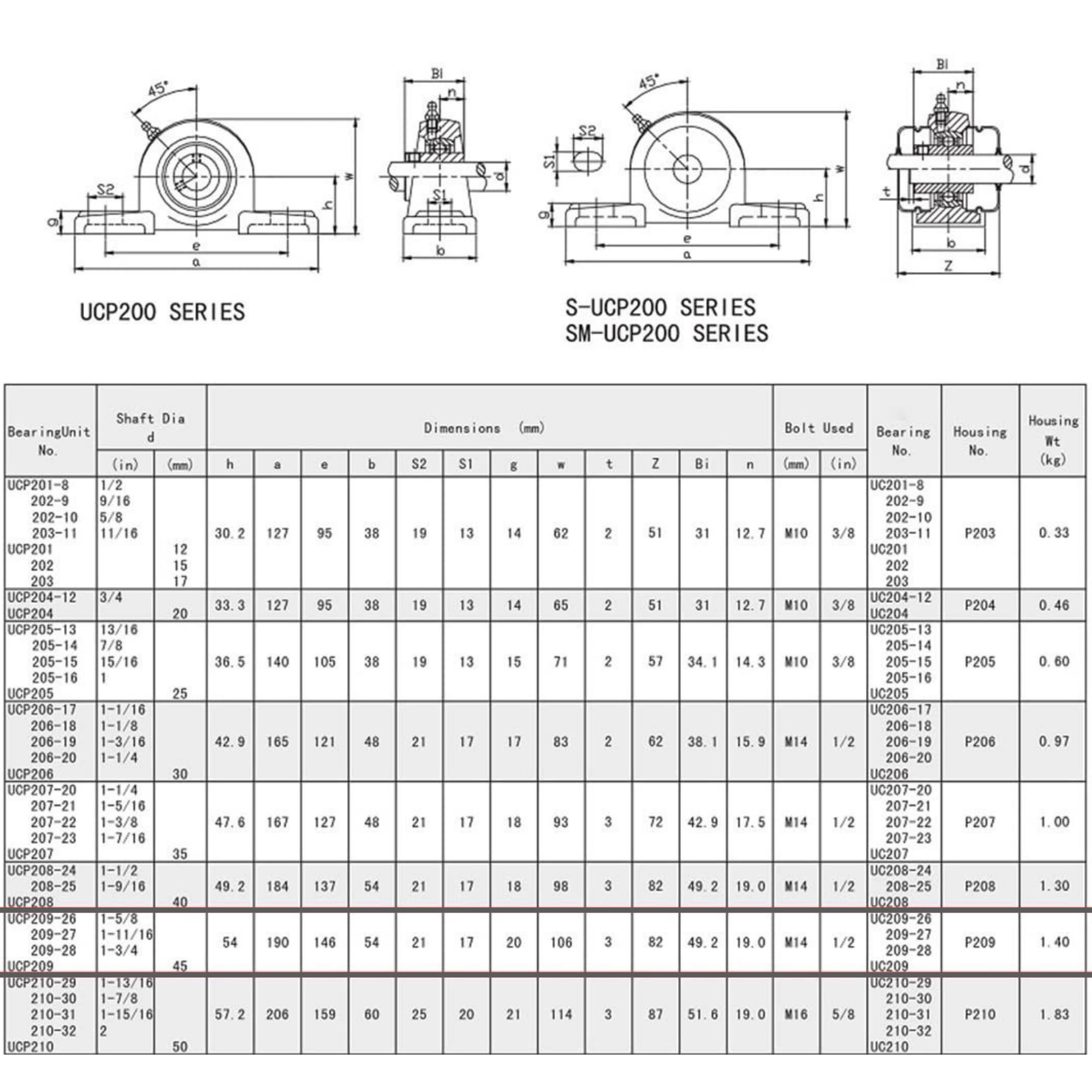

UCP209-28 Pillow Block Bearing Specifications

Style: 2 Bolts, Material: Cast Iron, Bore Size: 1-3/4 Inch, Static Load Rating: 21.3 kN/4800 lbs, Dynamic Load Rating: 34.1 kN/7700 lbs, Max RPM: 1900, Bolt Center to Center Distance: 146mm / 5.75in, Housing No.: P209

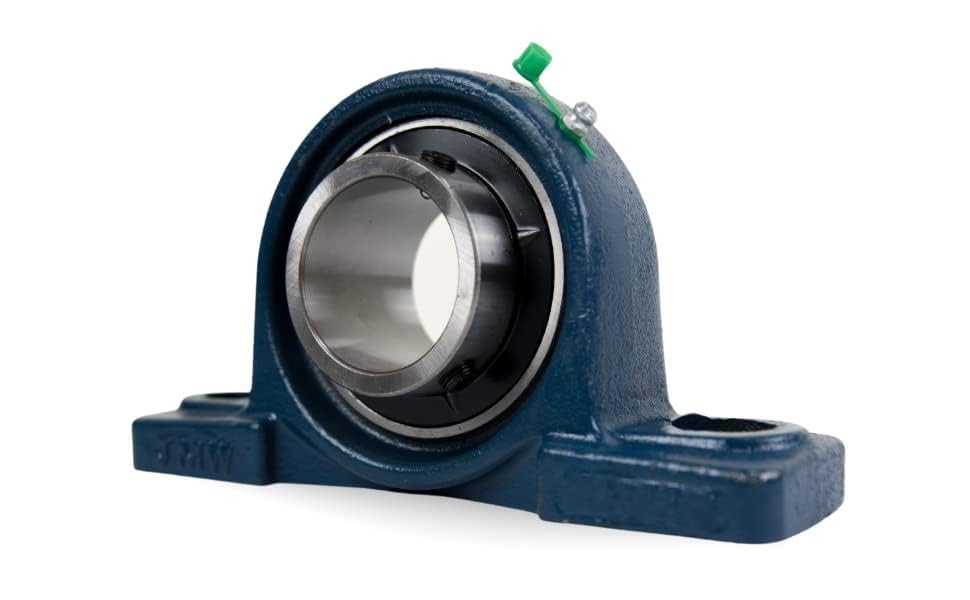

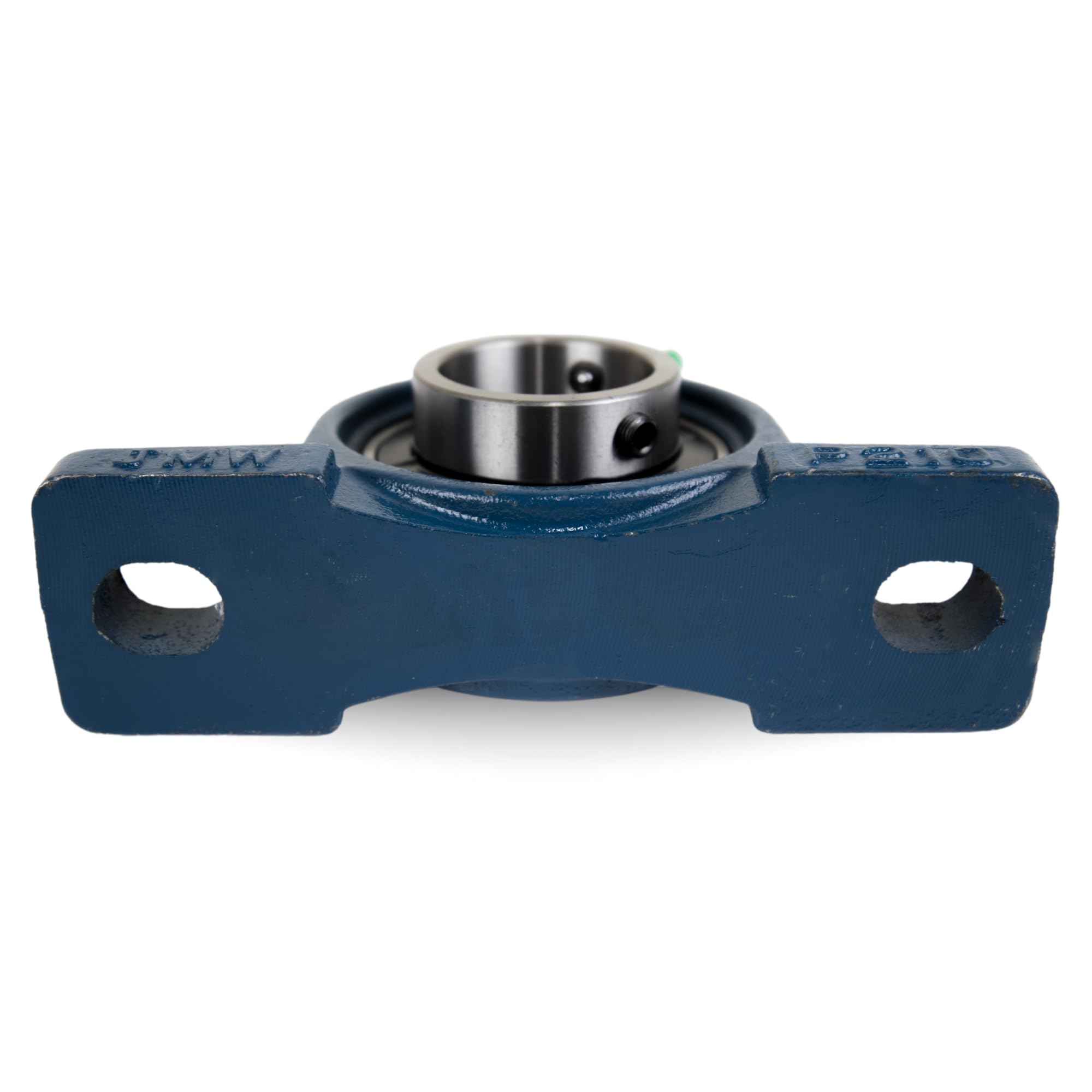

Solid-Base Mounted Bearing

This ready-to-mount unit has a solid base cast iron housing that is manufactured without cavities and fillers, helping eliminate material build-up from under the bearing. Whereas a hollow base is susceptible to build-up that can trap moisture and therefore cause corrosion to the cast iron housing. Jeremywell pillow block bearings only come with a solid base, making them a lot stronger and easier to maintain than a hollow base.

Self-Alignment Feature

If the bearing is crooked, for example, when you lay it on a flat table and it is not flat, please don’t worry. This is our self-alignment feature. These bearings are meant to have some play in them. When you mount them, just use the shaft to rotate the bearing into the proper position, or if it is not out of alignment by much, the bearing will correct its own alignment once it begins to rotate. Because if the bearings were not aligned properly and spinning at high RPMs, then sure disaster would happen. So our self-alignment feature is a way to prevent this from happening.
