NuTone 0696B000 Fan Motor Assembly
Reference Price (MSRP)
Reference price shown for information only. Final pricing depends on volume and account terms.
Inquiry-only showroom — no checkout.
- Feature: Replacement Motor Assembly
- Feature: Includes Blower Wheel & Mounting Bracket
- Feature: Fits Various NuTone Fan Models
- Feature: Superior Quality Assurance
- Feature: Easy Installation & Long-lasting
Fulfillment & Lead Time
Lead time and shipping options are confirmed during inquiry.
Brand & Distributor Terms
Eligibility, commercial terms, and any claim handling are confirmed during onboarding with brands and authorized distributors. Inquiry-only (no checkout)
Reviews
Description
Product Specifications

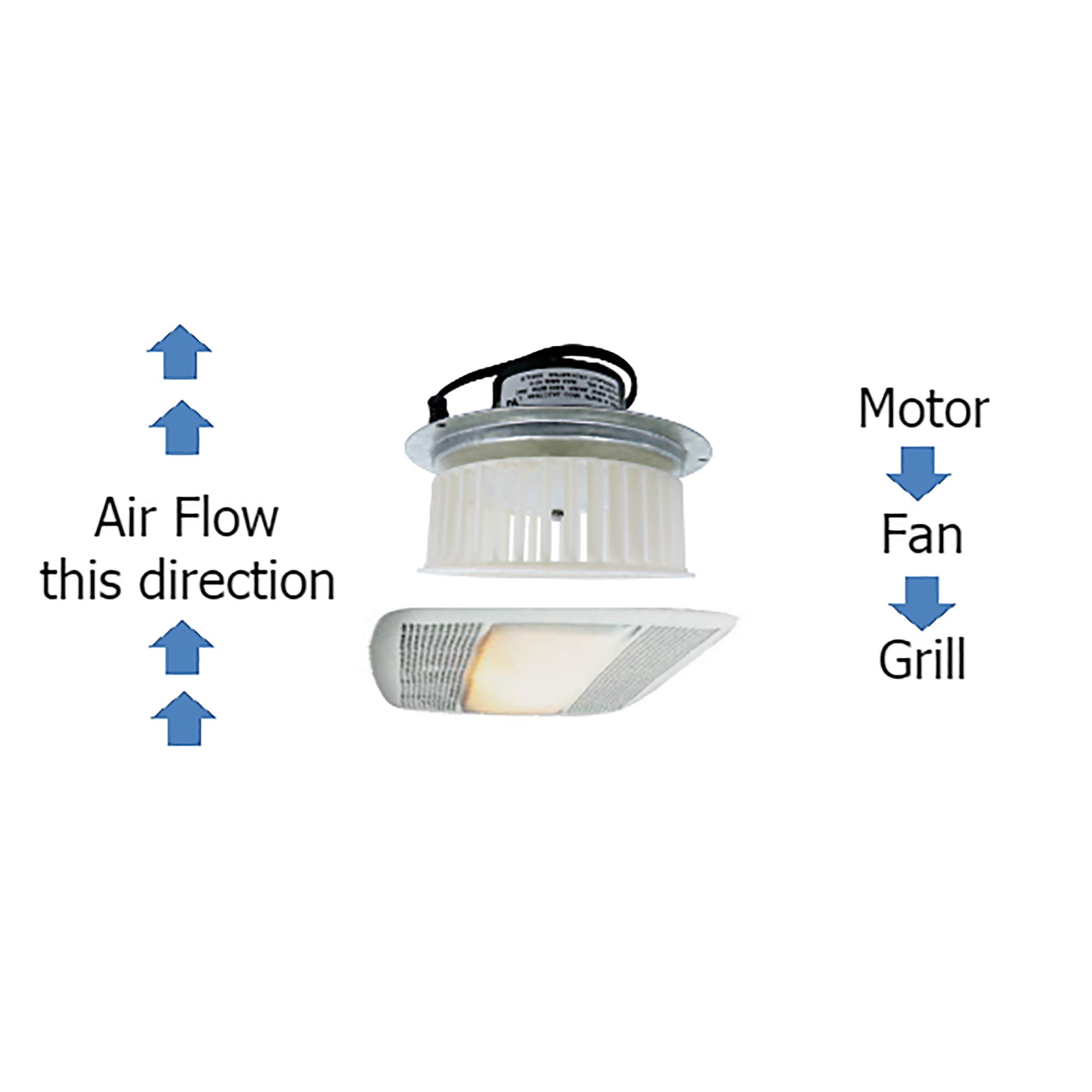

This is a NuTone 0696B000 motor assembly for QT100 and QT110 series fans replacements. These motors are designed to have the air flow move back across the motor to aid in cooling. If you experience the motor running for 10 minutes and then shutting off, only to go back in 30 minutes later, this is the thermal protection cycling, which may mean you have an improper installation. Motor measures 3.3 inches in diameter, 1400 RPM, Shaft size 1/4 x 1″
Product Specifications
This is a NuTone 0696B000 motor assembly for QT100 and QT110 series fans replacements. These motors are designed to have the air flow move back across the motor to aid in cooling. If you experience the motor running for 10 minutes and then shutting off, only to go back in 30 minutes later, this is the thermal protection cycling, which may mean you have an improper installation. Motor measures 3.3 inches in diameter, 1400 RPM, Shaft size 1/4 x 1″
Superior Quality you can Trust!
All SupplyEdge Products are UL/CSA approved to assure safe operation and long life.

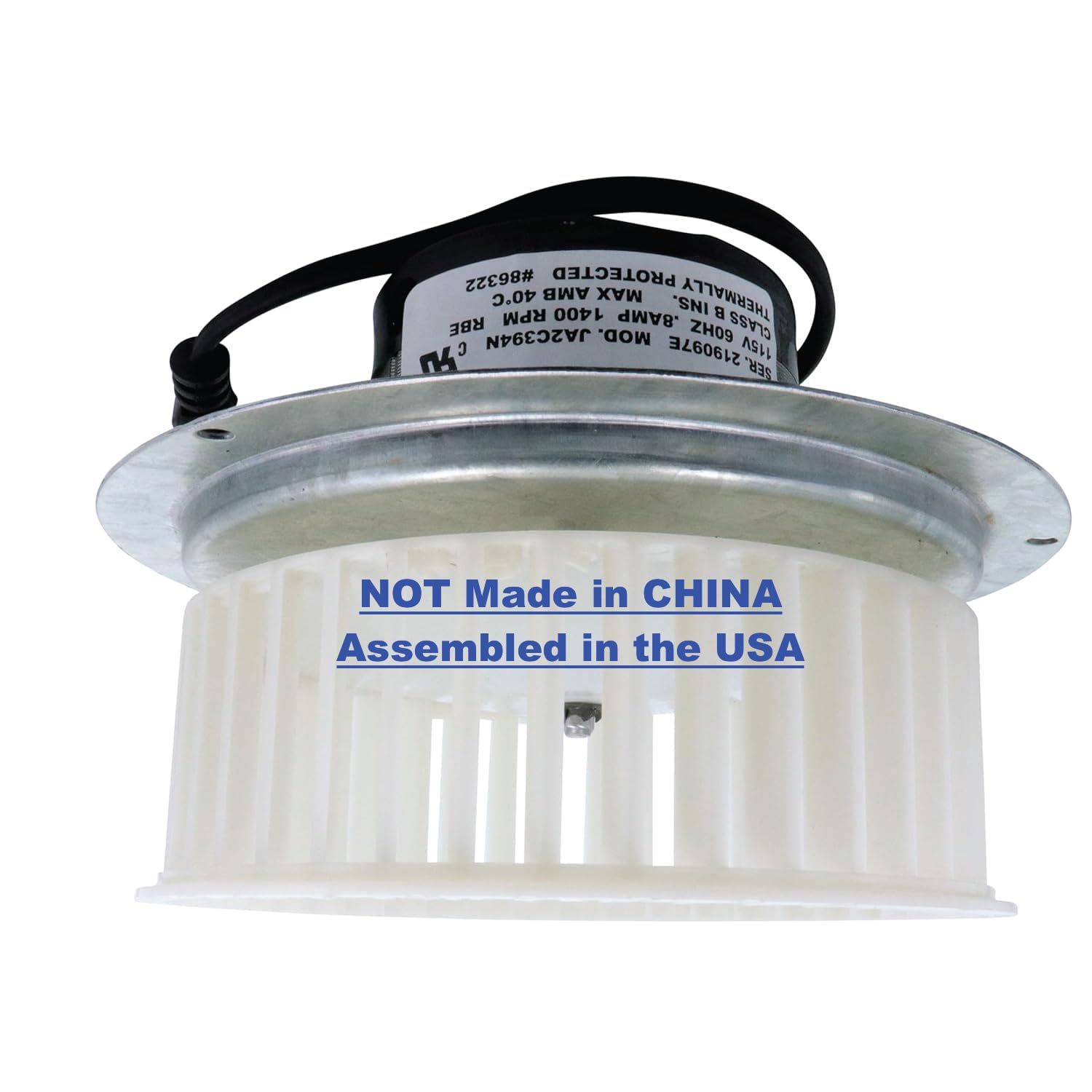

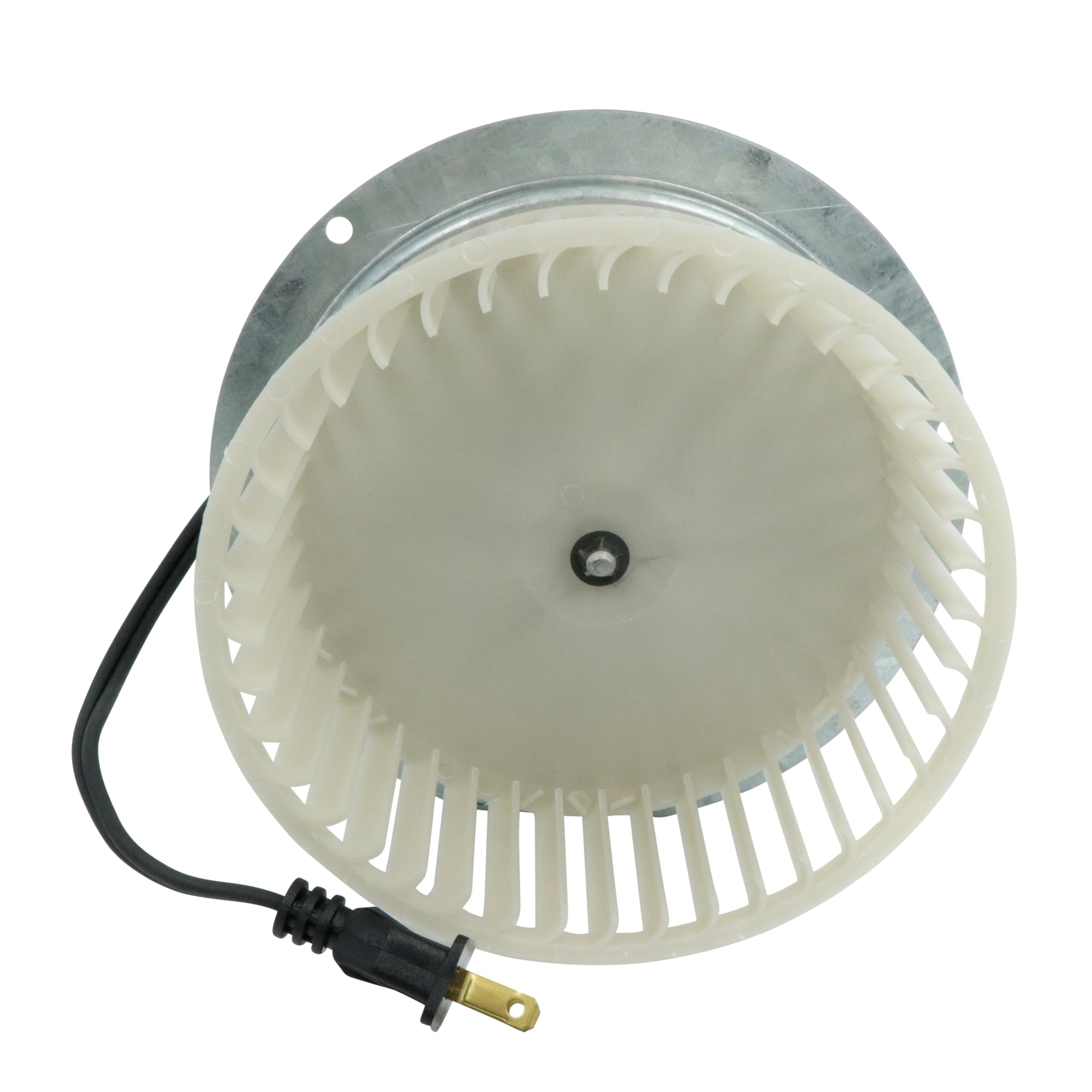

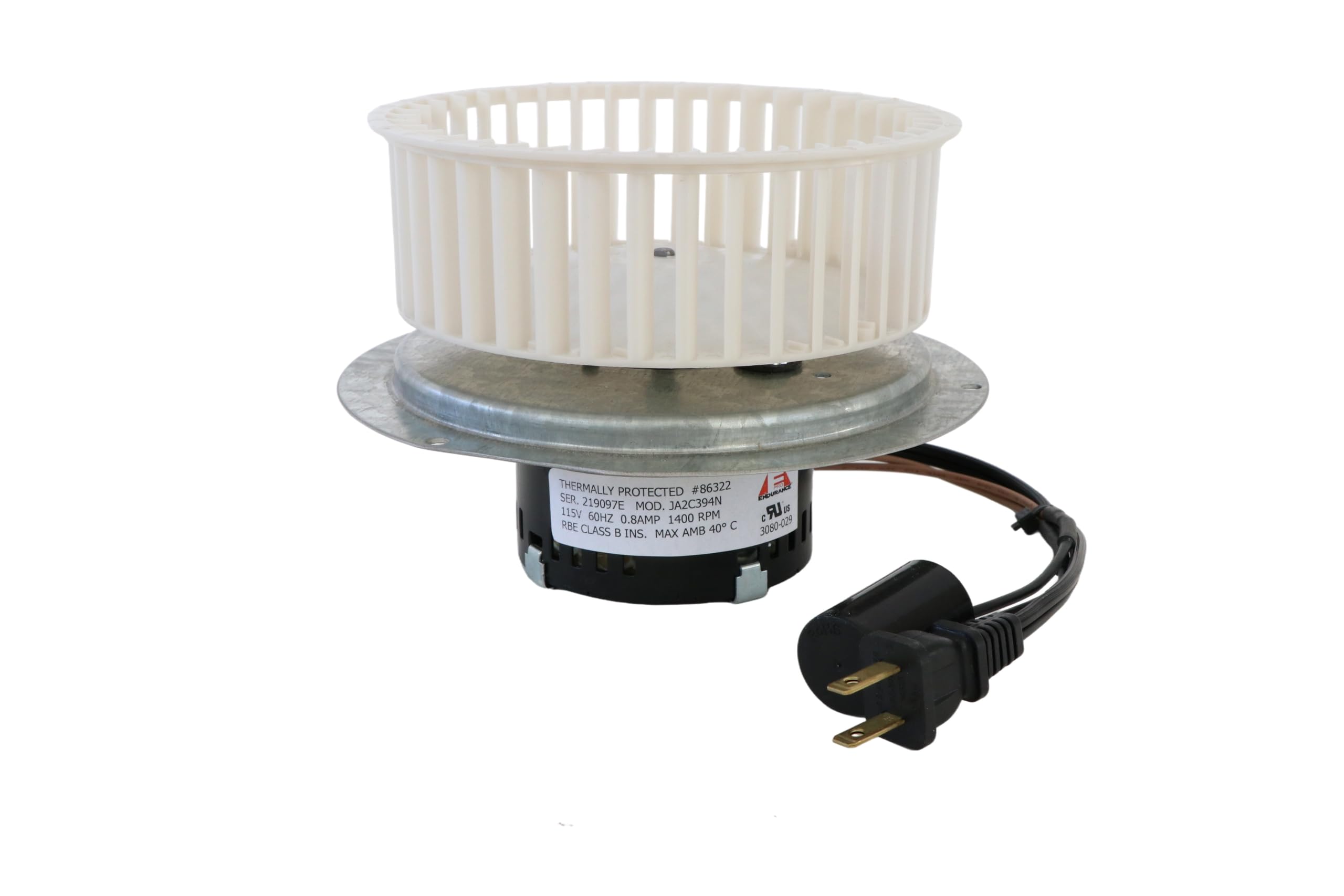

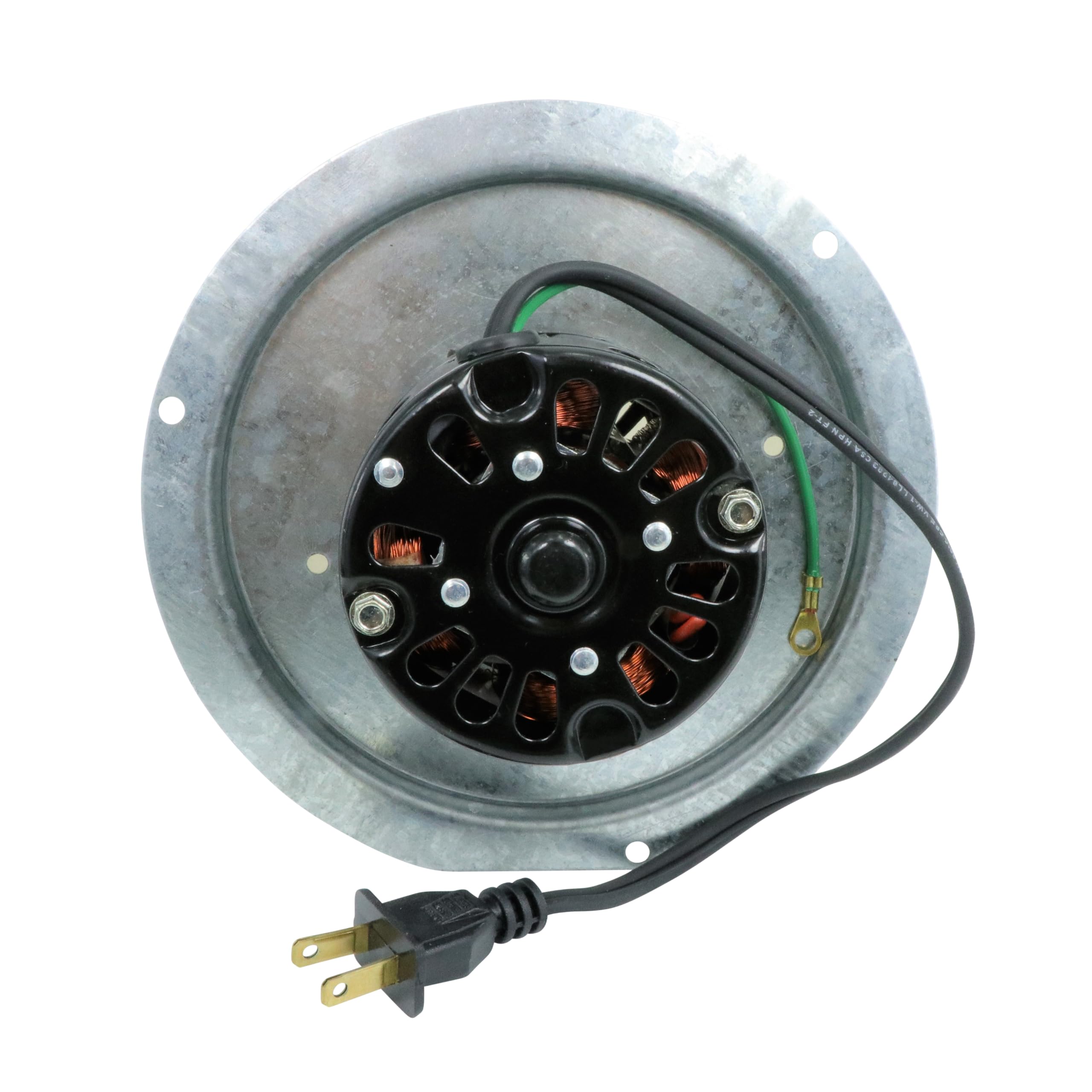

This motor assembly
Includes Motor Blower wheel Mounting bracket motor # JA2C394N. Works with the following ventilation fan models: NuTone QT100FL Fan NuTone QT100L Fan NuTone QT100LH Fan NuTone QT100LHM Fan NuTone QT100LM Fan NuTone QT110 Fan NuTone QT110NB Fan Works with the following ventilation fan models: NuTone QT110N Fan NuTone QT100H Fan NuTone QT9093WH Fan NuTone QT9093AB Fan NuTone QT9093CH Fan NuTone QT9093BR Fan
